“Best manufacturer of 90m³ stationary concrete mixing plant”
DESCRIPTION

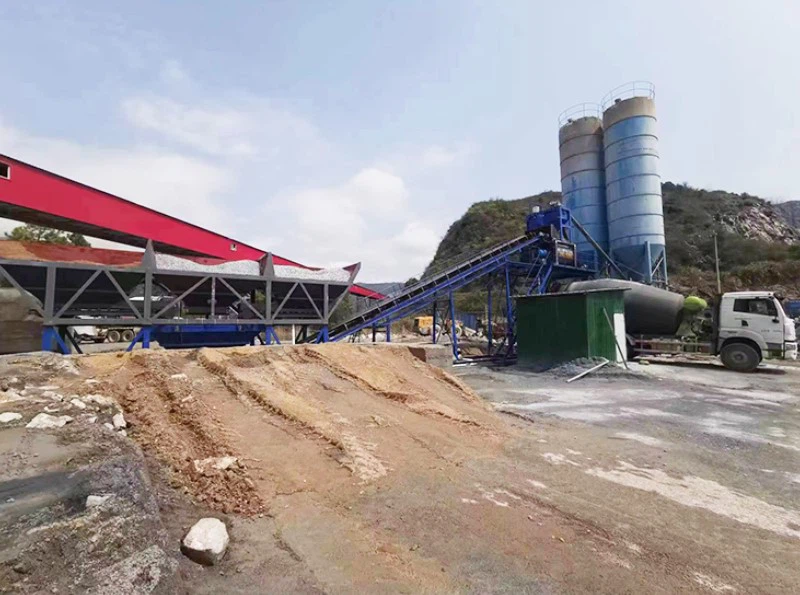

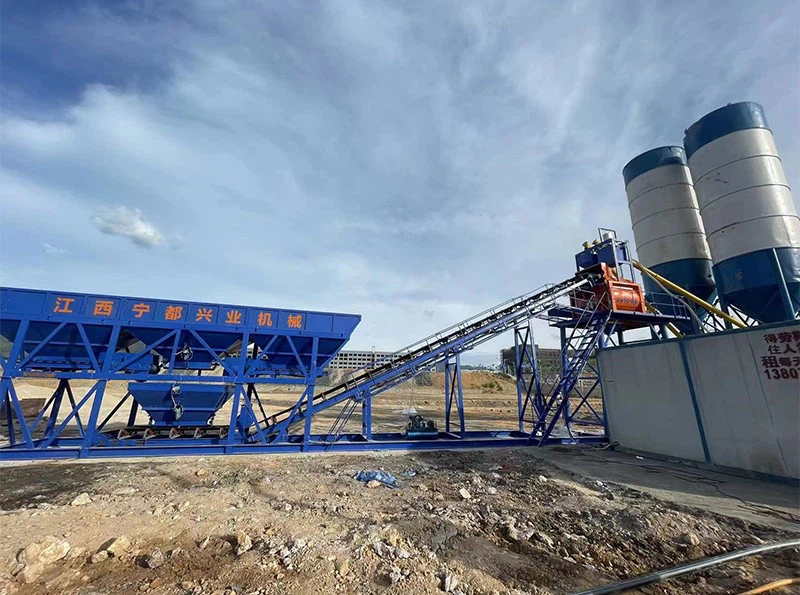

90m³ Stationary Concrete Mixing Plant
WORKING STEPS
Our 90m³ stationary concrete mixing plant efficiently produces high-quality concrete through a streamlined, simultaneous process
Aggregate Delivery: Proportioned aggregates are precisely transferred to the mixer via a hopper or belt conveyor.
Powder Integration: Cement and other powders are conveyed from the silo by screw conveyors, accurately weighed, and then discharged into the mixing console.
Liquid Addition: Water is pumped from the tank to its weighing hopper. Concurrently, additives are pumped and weighed into their hopper, then combined with the water before being discharged into the mixer.
Simultaneous Mixing: Powders, water, and additives are initially combined, followed by the aggregate. All components are thoroughly mixed in the console.
Once mixed, the fresh concrete is discharged directly into a concrete mixer truck for immediate transport to your construction site. Steps 1, 2, and 3 occur concurrently, significantly reducing production time and boosting project efficiency.
TECHNICAL PARAMETERS
A 90m³ stationary concrete mixing plant is a facility installed at a specific location and does not change its location as the construction project moves. Stationary concrete mixing plant provides a continuous and stable supply of concrete for large construction projects or construction sites with long-term concrete needs, with the characteristics of stable production capacity and high efficiency.
There is large variety of plants we also manufacturer 120m³ stationary concrete mixing plant too.
|
MODEL |
HLS90 Stationary Concrete Mixing Plant |
|---|---|
|
Theoretical Capacity |
90m³/h |
|
Model of Mixer |
JS1500 I / II |
|
Mixing motor power |
2*30kw |
|
Cycle period |
60s |
|
Volume of Mixer |
1500L |
|
Volume of Cement silo |
4*100t |
|
Capacity of batching plant |
2400L |
|
Volume of aggregate bins |
4*12m³ |
|
Number of Aggregate |
4 |
|
Max aggregate dia. |
<=80mm |
|
Discharge height |
4.2m |
|
Productivity of aggregate belt conveyor |
350m³/h |
|
Total power |
164kw |
Request a Quote for Your Construction Project Today !
Purchasing a concrete batching plant is a significant investment. To ensure you choose the right supplier and avoid costly mistakes, keep these tips in mind:
- Research and Check Reviews
- Learn More About Manufacturers
- Arrange On-Site Visits or Video Inspection
- Ensure Thorough After-Sales Support
- Timely Delivery and Logistics
Contact Form
Our Advantages
Double Concrete Batching Plant Equipment features
1) Two concrete production lines, large production volume, double efficiency
2) Two mixing host machines
3) Two aggregate conveying systems
4) Two cement conveying systems
5) One control room
