“Advanced Concrete Mixers for Modern Construction”
Concrete Mixer
JS-500 Mixer
Items: JS500 Mixer

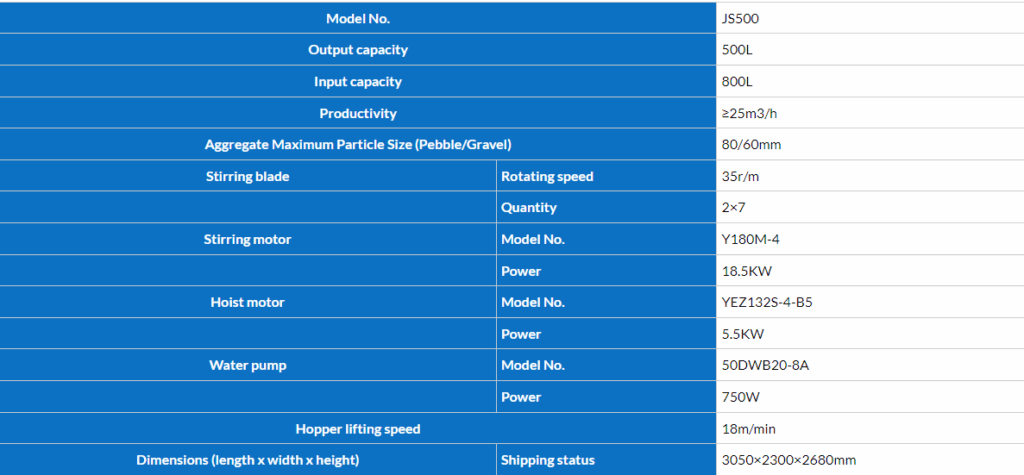

Theoretical Capacity: 30 m3/h

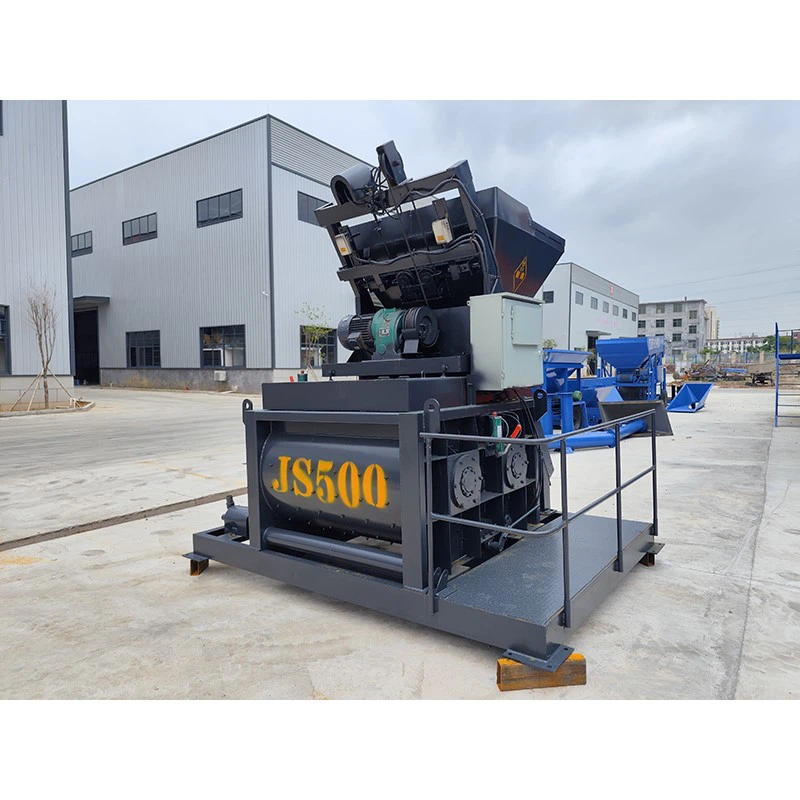

JS500 Mixer is a widely used concrete mixer with motorized discharging and can be used with dump trucks. It is mainly composed of a mixing drum, a hopper loading rack, a hoisting mechanism, a mixing drum, a mixing blade, a mixing shaft, a mixing arm, a rack, a discharging mechanism, an oil supply system, a water supply system and an electrical system.
JS500 Mixer is suitable for mixing plastic, dry hard, lightweight aggregate concrete and various mortars and mortars, and is an ideal machine for various construction sites.
Product composition

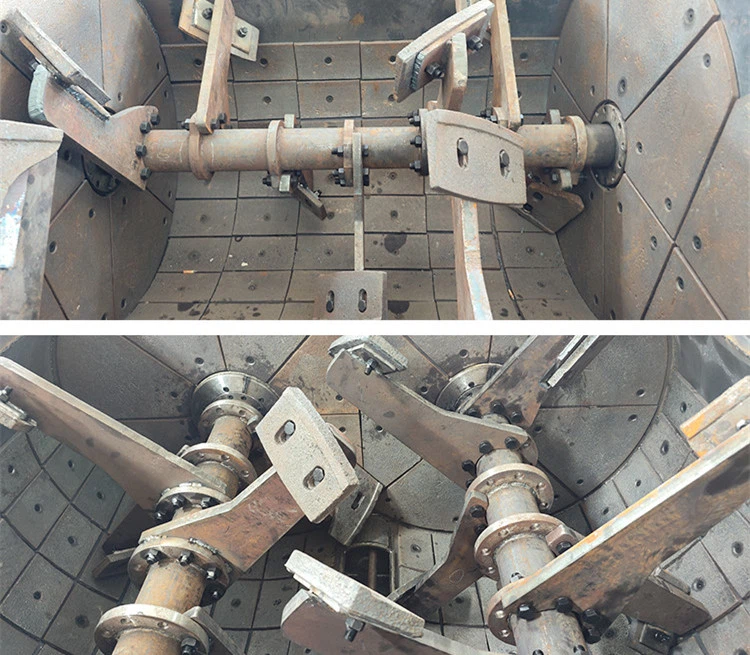

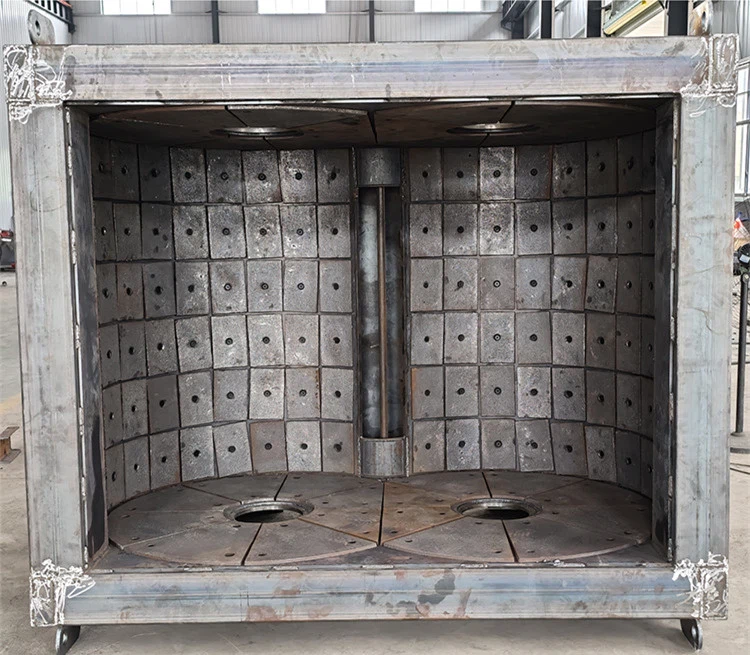

1. Mixing system
The mixing system of JS500 concrete mixer consists of motor, pulley, reducer, open gear, mixing drum mixing device, oil supply device and other components. When working, the motor drives the secondary gear reducer, and the two shafts of the reducer drive the two horizontal mixing shafts to rotate in opposite directions at a constant speed through two pairs of open gears.

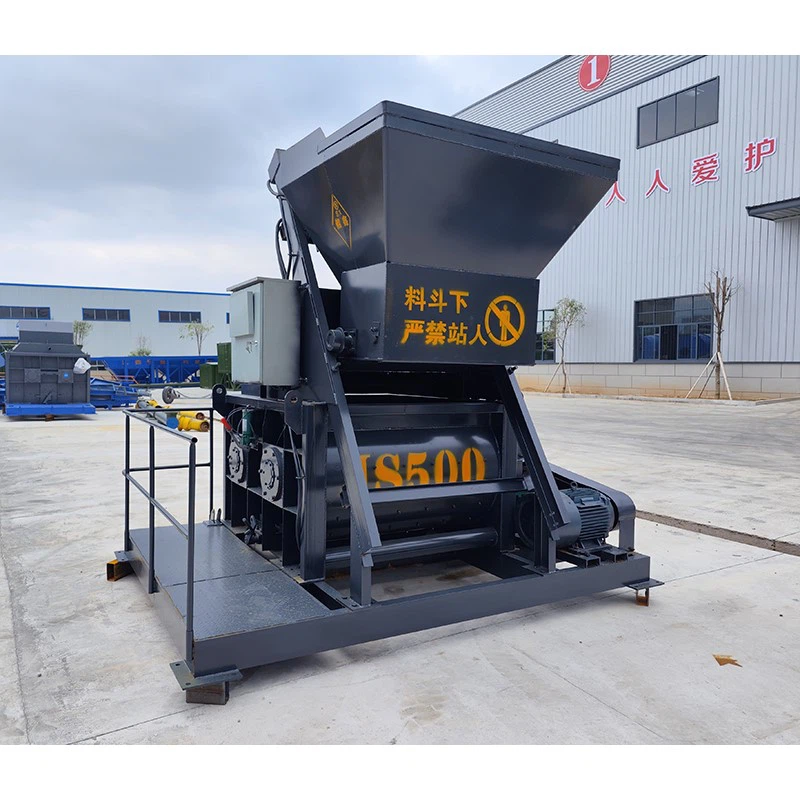

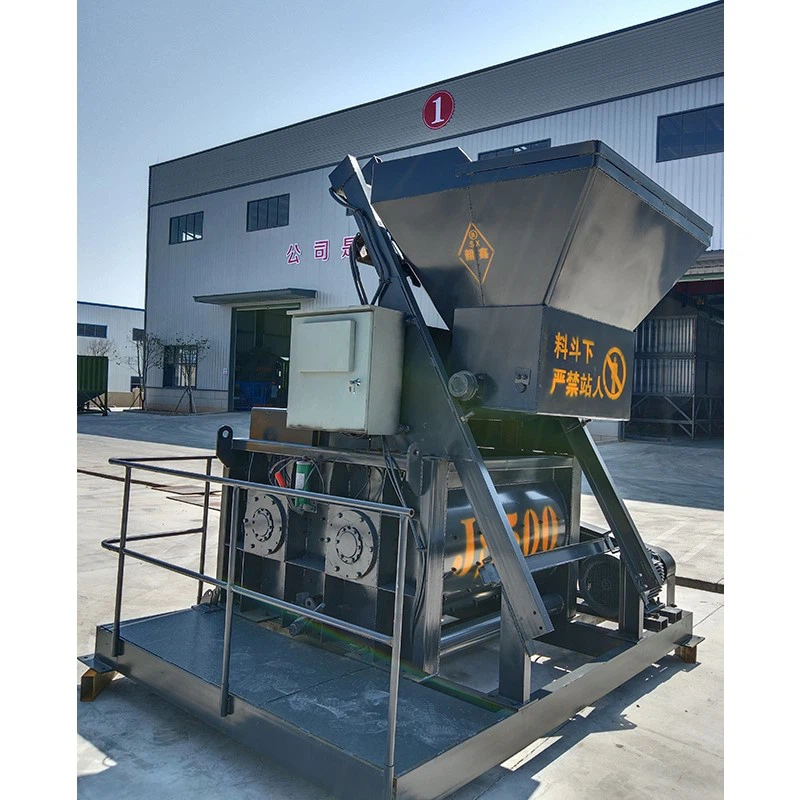

2. Feeding system
The feeding system of JS500 concrete mixer consists of a hoisting mechanism, a loading rack, a hopper, a feeding nozzle and other components. The brake motor ensures that the hopper can stop reliably at any position when running at full load, and the size of the braking torque is adjusted by the large nut on the rear seat of the motor.
3. Water supply system
The water supply system of mobile JS500 concrete mixer machine consists of a water pump, a throttle valve, a cleaning and spraying device. The throttle valve can adjust the flow of water, and the total amount of water supply is adjusted by the time relay.
4. Unloading system
The unloading system of portable JS500 concrete mixer consists of a unloading door, a cylinder, or a hydraulic cylinder and other mechanisms. There are three structures: hydraulic control, pneumatic control, and manual control. The unloading door is installed at the bottom of the mixer, and the cylinder or hydraulic cylinder is used to realize motorized unloading.
5. Electrical system
The electrical control circuit of the electric steel JS500 concrete mixer is equipped with an air switch, a fuse, and a thermal relay, which has the functions of short circuit protection and overload protection. All control buttons, air switch handles and indicator lights are arranged on the door of the distribution box, and a door lock is provided. The electrical components in the distribution box are installed on an edge plate, which is safe and reliable, and easy to operate and maintain.
Our Mixer Advantage
JS500 Mixer is suitable for mixing plastic, dry hard, lightweight aggregate concrete and various mortars and mortars, and is an ideal machine for various construction sites.
